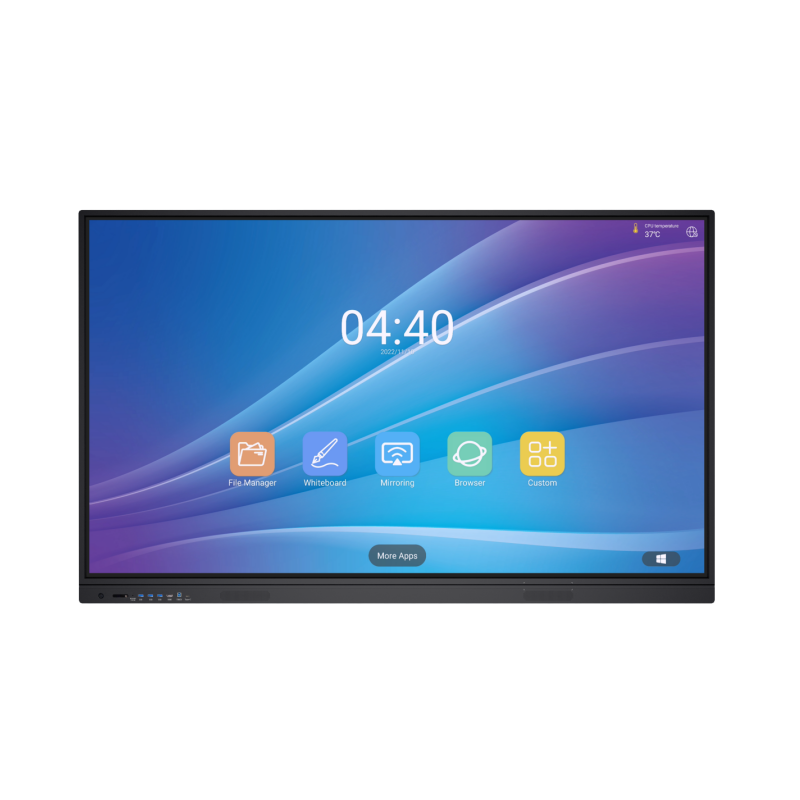

Interactive Flat Panel -EDLA with AI function
Flagship SoC · 6 TOPS NPU · Dual OS

Interactive Flat Panel -EDLA with AI function

B2B Wholesale & Volume Pricing Factory Direct OEM
Upgrade presentations and collaboration with high-precision infrared touch supporting up to 40 touch points. Featuring anti-glare tempered glass and a 4K ultra-HD whiteboard, it delivers smooth writing, instant gesture controls, and easy scan-to-share capabilities. Connect effortlessly using multi-function front Type-C and OPS expandable dual-system support. Ideal for conference rooms, training sessions, and commercial displays.
Size 65"
Chips 9679
Camera without camera
🛡️ 3-Year Commercial Warranty & On-Site Spare Parts Support
🏅 Official Google EDLA Android 14 + Intel OPS Win11 Dual OS
🚀 In-House Production: Fast 20-Day Volume Turnaround
Live Classroom & Boardroom Demo

See RK3576 Interactive Display in Action

Experience ultra-responsive sub-5ms touch writing, real-time 4K wireless casting, and smart AI lesson tools in live classroom and boardroom environments.

Optical Touch Engine · Core Hardware Architecture

Advantages of Infrared Touch Screens

Engineered with a high-density infrared light matrix and 7H Mohs toughened glass, IR touch technology delivers 40-point multi-touch precision, extreme physical durability, and versatile input flexibility without fragile surface conductor films.

Infrared Touch Screen Technology Architecture and 40-Point Multi-Touch Matrix
Touch Layer No Fragile Film / ITO-Free
Input Object Finger, Glove, Stylus, Pen
Surface Hardness 7H Mohs Tempered Glass
Operating Temp -20°C to +60°C (-4°F~140°F)
🛡️ Zero Wear & Tear

High Durability & Impact Resistance

Since IR touch screens have no physical conductive sensor overlay (unlike capacitive or resistive films), the surface is solid 7H Mohs tempered glass. Heavy repeated writing, sharp pressure, or accidental knocks cannot degrade touch sensitivity.

✓ 7H Mohs Anti-Scratch | IK08 Shock Rated
✍️ Universal Input

Versatile Multi-Object Input

Operates by detecting light beam interruptions rather than electrical skin conductivity. Users can interact effortlessly using bare fingers, thick winter gloves, active/passive styluses, or non-conductive pointers in cold rooms and workshops.

✓ Glove-Friendly | Any Pointer | Sub-5ms Latency
📐 Large Format Value

High Cost-Efficiency in Large Formats

Capacitive sensor glass cost escalates exponentially as screen sizes increase beyond 55 inches. Infrared touch frames scale with perimeter sensor diodes, delivering commercial 65", 75", 86", and 98" displays at highly competitive B2B factory pricing.

✓ 55"–110" Large Screen Scale | 100% Light Transmission
🧼 Easy Upkeep

Easy Maintenance & High Fault Tolerance

With no delicate electrical surface coating to preserve, the glass can be routinely disinfected and scrubbed. Chalk dust, marker residue, and hand oils do not impair multi-touch tracking due to redundant dual-direction optical grid beams.

✓ IP65 Dust & Water Resistant Front | Disinfectant Safe
🌡️ Extreme Environment

Wide Industrial Temperature Range (-20°C to 60°C)

Capacitive screens frequently suffer from thermal drift and false capacitive triggers under extreme cold or intense solar heat. Infrared technology performs with consistent optical precision across -20°C to 60°C (-4°F to 140°F), equipped with anti-ambient light algorithms that reject up to 100,000 Lux of direct sunlight and spotlight interference.

✓ -20°C ~ 60°C Industrial Range | Anti-Ambient Light > 100,000 Lux | Outdoor Kiosk & Industrial Ready
AI Collaboration Suite

 AI Interactive Whiteboard

Engineered with our proprietary OmniCanvas AI suite — an intelligent workspace that converts handwriting to crisp text, recognizes geometric diagrams in real time, and equips instructors with AI lesson planning tools.

✓ Real-time handwriting recognition into typed text & geometric shapes
✓ Dual stylus with fine 2mm nib for precision mathematical drawing
✓ Integrated multi-language OCR and AI lesson structure outline
OmniCanvas AI Whiteboard
OmniHub Smart Document Hub
Integrated Workspace Hub

 Smart Document Manager

Open, edit, and annotate presentations and documents directly on the screen without connecting a PC. OmniHub supports 20+ file formats with direct cloud drive sync and instantaneous QR export.

✓ Direct support for PDF, Word, Excel, PPT, MP4, and 20+ file formats
✓ Instant cloud synchronization with Google Drive, OneDrive, and private NAS
✓ Fast QR-code scan to transfer annotations directly to mobile devices
Cloud Device Operations

 Centralized Device Management

A unified cloud console for IT administrators to monitor and orchestrate displays across multiple buildings or campuses. Push silent firmware updates, configure automated schedules, and audit fleet security.

✓ Unified browser console for batch monitoring across campus and offices
✓ Automated overnight firmware push and power scheduler
✓ Comprehensive device usage analytics and alert reporting
Centralized Cloud Management Platform
Seamless Connectivity

Front I/O Interface Highlights

Full-function Type-C (65W–100W PD charging, 4K video, USB touch) | HDMI In 2.0 | USB 3.0 × 3 | Touch USB

⚡

Type-C 65W–100W PD

Single cable for 4K video, laptop charging, and touch feedback.

🖥️

Front HDMI 2.0 In

Instant plug-and-play input for guest presenters and laptops.

💾

USB 3.0 High-Speed × 3

Seamless access for flash drives, visualizers, and peripherals.

✍️

Touch-USB Output

Zero-latency touch transmission directly back to external computers.

Premium Hardware for Heavy Commercial Use

Built to withstand the rigorous daily demands of classrooms and enterprise rooms.

🛡️

4K Anti-Glare Glass

4mm Mohs 7 scratch-resistant tempered glass with high light transmittance.

🎯

Zero-Gap Bonding

Eliminates internal reflection and parallax for natural writing accuracy.

🖐️

40-Point Touch

Ultra-responsive infrared multi-touch supporting group interaction.

🎥

Integrated AV Array

48MP AI auto-framing camera paired with 8-element noise-cancelling mics.

Versatile Deployment

Application Scenarios for RK3576

Proven performance in modern classrooms, high-end boardrooms, medical consultation, and digital signage.

Smart Classroom

Smart Classroom

Solves passive learning and chalk dust hazards with 4K zero-parallax touch, interactive multi-student quiz assessments, and real-time lesson digitization.

Hybrid Meeting Room

Hybrid Meeting Room

Solves cable clutter and remote meeting friction with multi-device wireless casting, 4K split-screen video, and dual-way real-time whiteboard co-annotation.

Smart Medical Ward

Smart Medical Ward

Solves specialist scarcity and bedside communication delays with anti-glare medical imaging review, sterile touch surfaces, and remote telehealth consultation.

Digital Signage

Digital Signage

Solves high poster printing costs and visitor navigation confusion with 7x24 industrial reliability, cloud-scheduled media, and interactive 3D wayfinding.

Engineering Specs

RK3576 Technical Specifications

Detailed hardware, system architecture, and mechanical engineering datasheet.

Category RK3576 Parameter Specifications
Main Processor (SoC)Rockchip RK3576 (Octa-Core: 4x Cortex-A72 @2.2GHz + 4x Cortex-A53 @1.8GHz)
AI Neural Engine (NPU)Dedicated 6.0 TOPS AI Computing Power for Handwriting & Vision
Operating SystemAndroid 14 with Google EDLA Official Certification + Windows 11 OPS Dual-OS
Memory & Storage8GB / 16GB LPDDR4x RAM + 128GB / 256GB High-Speed eMMC 5.1
Display Sizes & Resolution55", 65", 75", 86", 98", 110" · 3840 × 2160 4K UHD @ 60Hz / 120Hz
Touch SystemZero-Gap 40-Point Infrared Touch, < 5ms Writing Latency, ±1mm Accuracy
Glass & Optics4mm Anti-Glare 7H Mohs Toughened Glass with Full Optical Zero-Bonding
Front InterfacesFull-Function USB-C (65W/100W PD), HDMI In 2.0, USB 3.0 × 3, Touch-USB
Audio & CameraIntegrated 48MP AI Auto-Tracking Camera + 8-Array Far-Field Microphones + 2x 20W Hi-Fi Speakers
Wireless & NetworkWi-Fi 6 (2.4G/5G), Bluetooth 5.2, Dual RJ45 Gigabit Ethernet
CertificationsGoogle EDLA GMS, ISO 9001, CE, FCC Part 15, RoHS 2.0, CB, CCC
Tailored Manufacturing

OEM / ODM Customization Options

We tailor the RK3576 hardware and DIY System software to your brand specifications.

Option 01

Bezel & Silkscreen Logo

Your brand logo on the lower front bezel, carton packaging, and serial label.

Option 02

DIY System UI & Theme

Custom Android boot animation, wallpaper, default app launcher, and system about info.

Option 03

I/O Ports & OPS Specs

Add custom RS232 protocols, optical output, or custom OPS Intel i5/i7 hardware.

Option 04

SKD & CKD Logistics

Ship knock-down kits to your local facility to minimize import duties and freight.

Modular Hardware Add-Ons

Modular Hardware Customization Options

Select optional enterprise hardware modules to configure and quote your custom batch production:

MOQ 50 Units · Factory Integrated
Selected Custom Hardware: None selected (Click checkboxes above to add to your custom RFQ)
Apply Selected Modules to RFQ ↓
Direct Factory Quote

Request Quote for RK3576 Display

Tell us your required screen sizes (55"–110"), target quantity, and custom DIY system preferences. Our engineers will reply within 24 hours.

✓ Direct factory pricing with volume discounts
✓ Sample evaluation units ready for fast dispatch
✓ Full Google EDLA & ISO9001 compliance documentation

Get Your Custom Quote

Receive direct factory quote & technical datasheets.
