32“ Portable Smart Screens
• 32" frameless capacitive touchscreen with vibrant colors and wide viewing angles; Built-in battery providing up to 5 hours of playback with 90W fast charging, Fully adjustable mobile stand with silent rolling wheels, height adjustment, tilt, and ±90° rotation.
Experience Unconstrained Mobile Productivity
Watch how the Portable Smart Screen moves effortlessly between executive huddles, retail pop-ups, patient wards, and live-streaming studios without power cables.
Untethered Freedom with High-Capacity Battery & Silent Wheels
Break free from wall outlets and fixed mounts. A heavy-duty weighted base houses a high-density lithium battery delivering up to 6 hours of continuous operation, paired with five whisper-quiet concealed multi-directional casters for effortless room-to-room transitions.

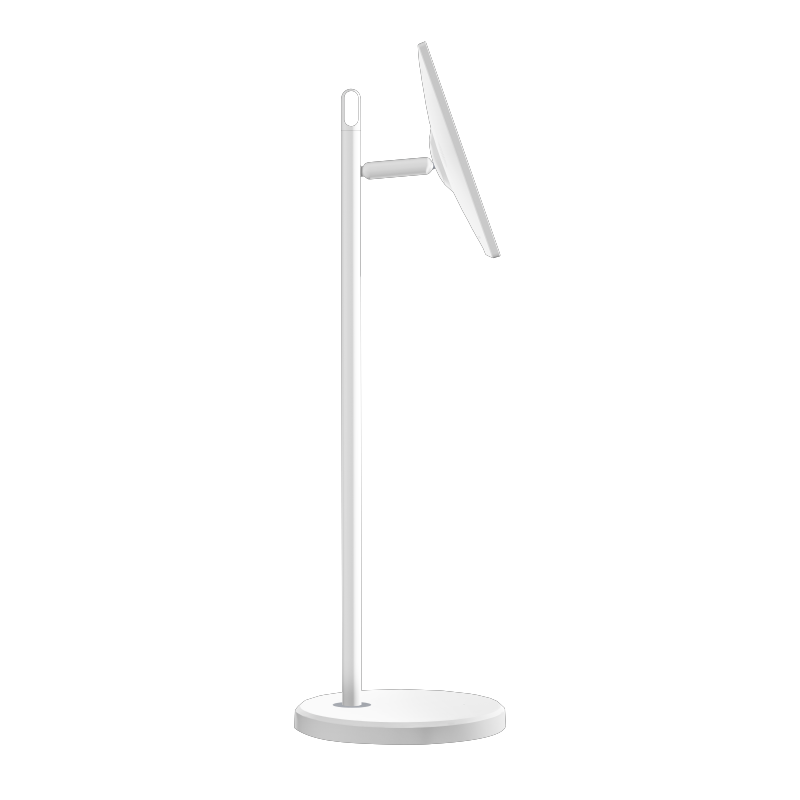

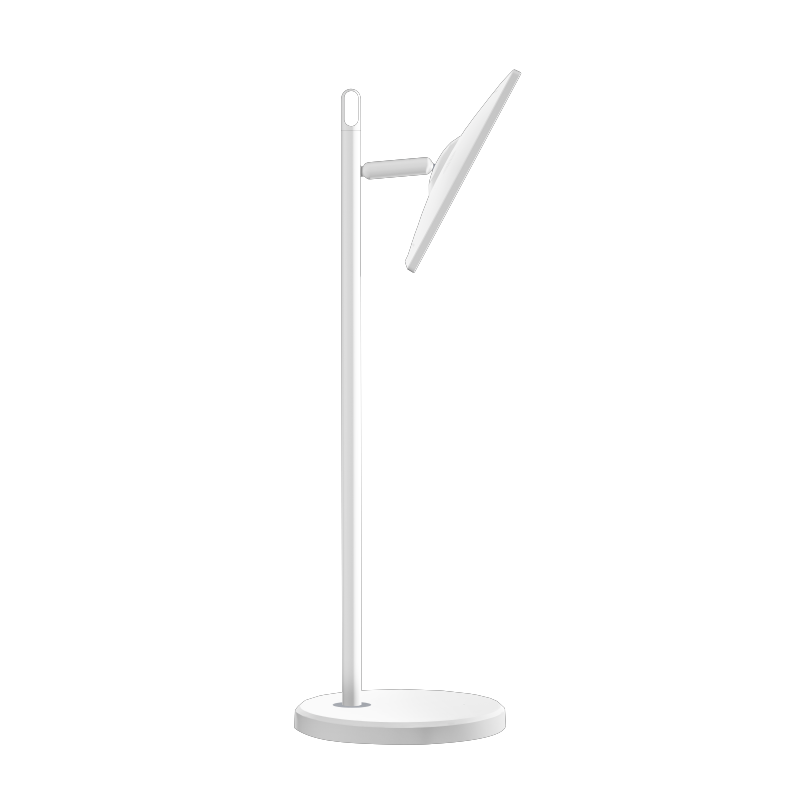

90° Bi-Directional Pivot, Tilt & Height Adjustment
Effortlessly rotate between landscape mode for spreadsheets and video conferences, and portrait orientation for mobile apps, PDF contracts, and vertical live-streaming. A gas-spring damping arm allows smooth height adjustments and tilt angles up to 25°.
Anti-Glare IPS Touchscreen with 10-Point Capacitive Glass
Featuring a vibrant 1080p FHD / 4K UHD IPS panel with anti-glare etching to eliminate showroom reflections. High-precision 10-point projected capacitive (PCAP) touch delivers fluid, smartphone-like responsiveness with finger or passive stylus input.
Instant Multi-Device Wireless Screen Mirroring
Cast seamlessly from iOS, Android, macOS, and Windows with low-latency AirPlay, Miracast, and DLNA protocols. A multi-window split screen allows two users to present side-by-side without installing third-party software.
DIY System Architecture & Enterprise Fleet Control
Powered by Android with Google Play availability or locked-down enterprise kiosk mode. Fully customizable with your corporate boot animation, launcher themes, white-label branding, and remote fleet management.
Base & Panel I/O Interface
Full-Function Type-C (DisplayPort & Fast Charge) | HDMI In 2.0 | USB 3.0 × 2 | DC Fast Charge Port | 3.5mm Headphone Jack
Type-C DP & PD
Supports 4K video input, touch feedback, and reverse fast-charging.
HDMI 2.0 In
Standard HDMI interface to connect external computers, consoles, and TV boxes.
USB 3.0 × 2
High-speed file transfer for USB drives, external webcams, and wireless dongles.
DC Fast Charge
High-efficiency DC input port delivering full recharge in approximately 2 hours.
3.5mm Audio
Stereo audio jack for external studio headphones, headsets, and PA sound systems.
Engineered for Commercial Durability & Daily Transit
Designed and stress-tested to endure active commercial movement and continuous enterprise duty.

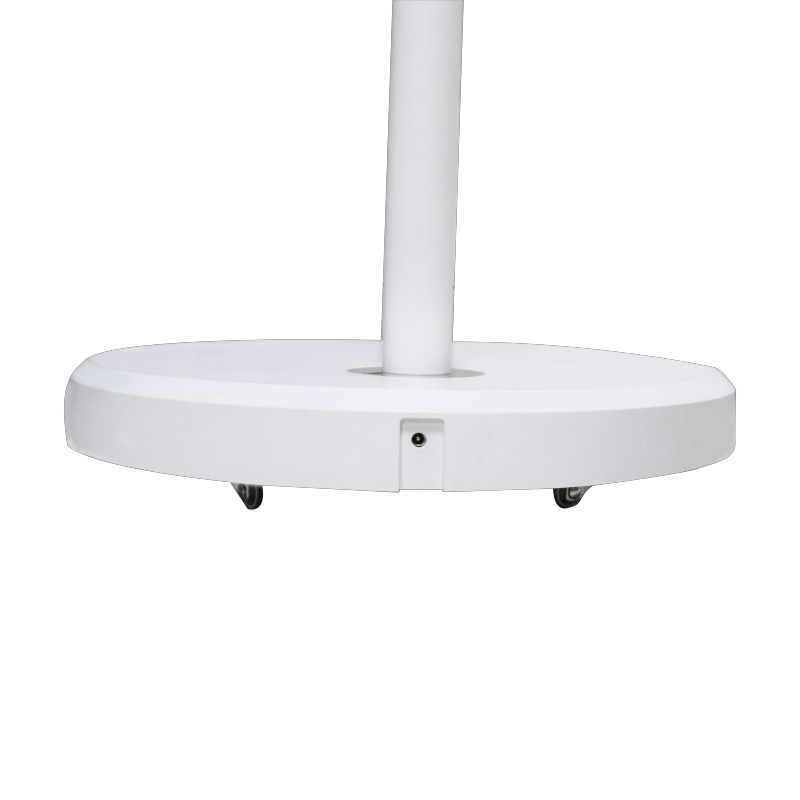

Reinforced Weighted Base
Anti-tip low center of gravity engineered to stay stable during rapid transit and vigorous touch interaction.

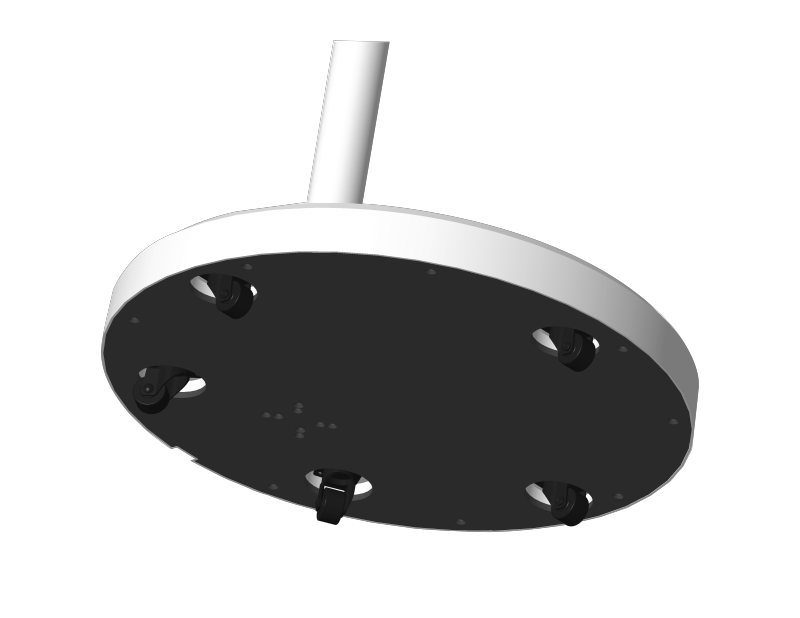

Whisper-Quiet Casters
Medical-grade 360° silent polyurethane wheels glide smoothly across carpets, hardwood, and tiled floors.
Long-Life Lithium Cells
Automotive-grade safe lithium iron phosphate / high-density ternary cells with fast 2-hour recharge.
Dual Hi-Fi Sound & Mics
Integrated dual 5W stereo speakers and dual far-field noise-reduction microphones for crisp video conferences.
Versatile Across Every Environment
Engineered to deliver high-impact interactive visuals wherever business happens.
Agile Huddle & Meeting Rooms
Roll the screen anywhere for impromptu team stand-ups, video conferencing, and wireless sprint reviews.
Retail Pop-Up & Live-Streaming
Rotate into portrait mode for vertical live-streaming broadcasts, digital product catalogs, and interactive store displays.
Healthcare & Patient Bedside
Silent wheels glide easily through hospital corridors for bedside diagnostics, digital charts, and telehealth consultations.
Fitness Studio & Smart Training
High-definition fitness workout coaching, interactive training routines, and posture feedback anywhere on the gym floor.
Technical Specifications
Comprehensive hardware, optical, and system architecture parameters.
🖥️ 1. Display & Optical Engineering ▼
| Screen Diagonal Sizes | 27-inch / 31.5-inch active matrix IPS panel |
| Native Resolution | 1920 × 1080 Full HD (1080p) or Optional 3840 × 2160 4K UHD @ 60Hz |
| Brightness & Contrast | 400 cd/m² (nits) typical, 1200:1 static contrast ratio |
| Viewing Angles & Color Gamut | 178° Horizontal / 178° Vertical; 100% sRGB wide color space |
| Surface Glass & Treatment | Anti-Glare (AG) chemical etching, 7H hardness scratch resistance, oleophobic coating |
🖐️ 2. Touch System & Interaction ▼
| Touch Sensing Technology | Projected Capacitive (PCAP) 10-Point Multi-Touch |
| Touch Response Latency | ≤ 8ms response time, high-accuracy tracking |
| Writing Input Tools | Finger touch, capacitive passive stylus, or anti-palm glove |
| Touch Optical Bonding | Full optical zero-bonding with zero internal air reflection |
🔋 3. Mobility, Battery & Power Architecture ▼
| Battery Capacity | Built-in High-Density Lithium Pack (108Wh / 14.8V 9000mAh) |
| Continuous Battery Runtime | 4 to 6 hours continuous video playback / interactive use |
| Recharging Time | Fast DC 65W charging: Approx. 2.0 hours to 100% full capacity |
| Caster Mobility | 5x Concealed 360° omnidirectional medical-grade silent polyurethane casters |
| Stand Base Mechanics | Low-center-of-gravity cast iron counterweight base with anti-tip safety design |
⚙️ 4. System Architecture, Storage & Interfaces ▼
| Main Processor (SoC) | Octa-Core Cortex A55 / A76 high-performance multimedia chipset |
| RAM & Storage | Customized 8GB LPDDR4x + 128GB high-speed eMMC 5.1 |
| Operating System | Customized DIY System (Android 12 / Android 13) with Google Play & Kiosk Mode |
| Wireless Connectivity | Dual-band Wi-Fi 6 (2.4GHz / 5GHz 802.11ax) + Bluetooth 5.2 |
| Physical I/O Ports | Full-Function Type-C × 1, HDMI 2.0 In × 1, USB 3.0 × 2, DC In × 1, 3.5mm Audio × 1 |
📐 5. Mechanical Dimensions & Ergonomics ▼
| Pivot & Rotation | 90° Bi-directional screen rotation (Portrait & Landscape auto-sensing) |
| Height Adjustment Range | Pneumatic damping lift: 180mm to 220mm vertical adjustment stroke |
| Tilt & Swivel Angles | Pitch tilt: -15° (downward) to +25° (upward); Horizontal swivel: ±90° |
| Base Diameter & Total Weight | Base diameter: 400mm; Net weight: ~14.5 kg (27") / ~17.5 kg (32") |
| Global Certifications | CE, FCC Part 15, RoHS 2.0, CB, UN38.3 & MSDS (Battery safety transport) |
OEM / ODM Customization Options
We customize hardware finishes, battery sizes, and DIY System software to your brand specifications.
Bezel & Base Colors
Custom anodized aluminum chassis in space gray, ceramic white, midnight black, or custom RAL colors.
DIY System UI & Branding
Custom Android boot animation, branded launcher interface, pre-installed proprietary apps, and kiosk lock mode.
Battery & Camera Upgrades
Extended battery packs up to 8 hours, 4K magnetic detachable webcams, or dual directional mic arrays.
Retail Packaging & SKD Kits
Full-color four-color retail gift boxes, drop-test certified carton packaging, and semi-knocked-down (SKD) kits.
Request Wholesale & OEM Quote for Portable Smart Screens
Direct factory pricing for distributors, brand owners, and commercial integrators. Get a customized quote within 24 hours.
Request Portable Screen Quote
Receive direct factory quote, MOQ, and technical specification sheet.
